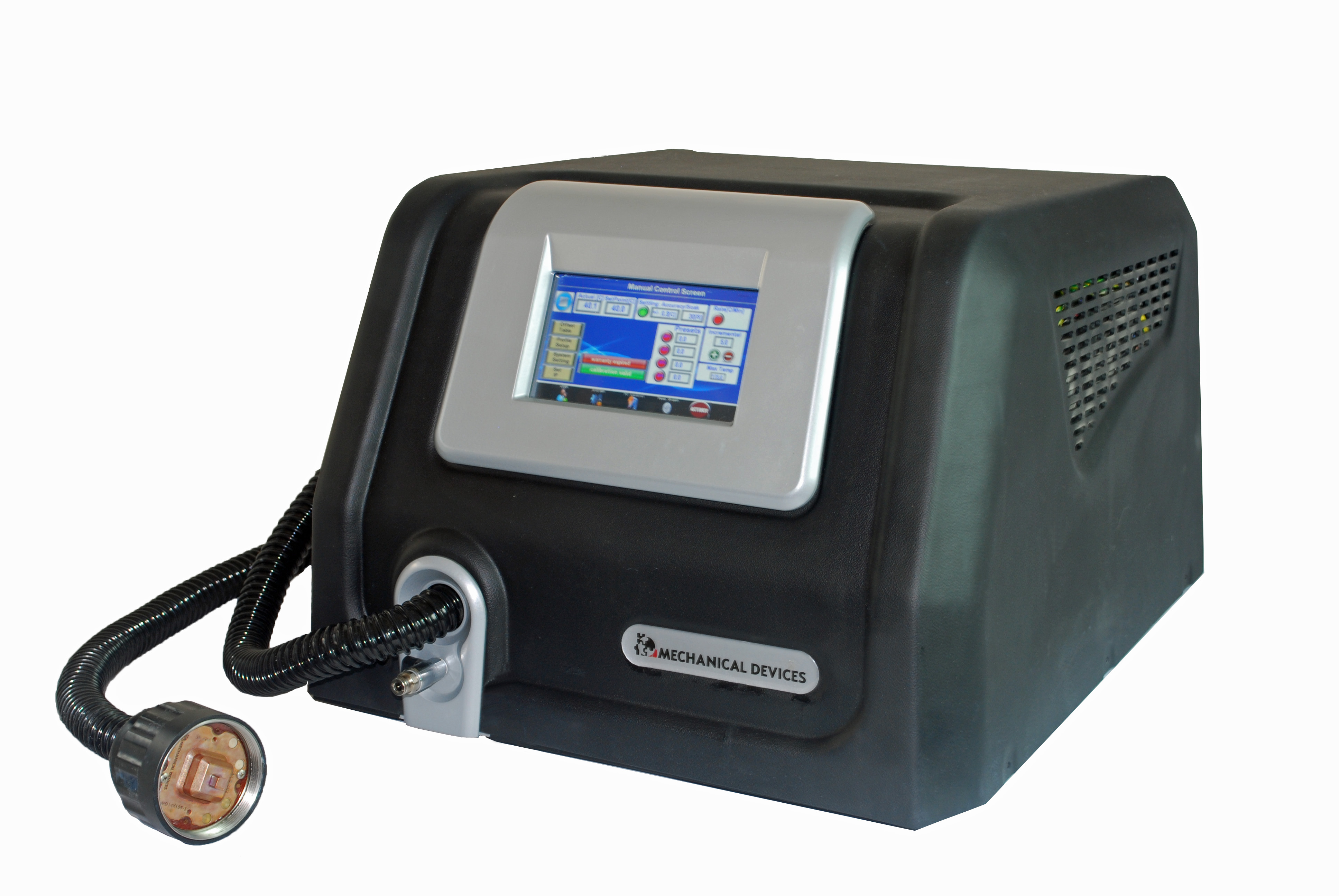

MDMTC-2

Specifications:

• Tcase Temperature Range of - 60°C to + 175°C *
• Temperature accuracy < 0.5°C
• Cooling power:
        23Watt @ -55°C
        52Watt @ -40°C
        90Watt @ -30°C
        185Watt @ 0°C
  • Fluid Free Operation
  • Compact & Portable Design.
  • Humidity and Frost Free Control.
  • Transition Rates: Heating 75°C/Min max (not on the entire range).
                              Cooling 50°C/Min max (not on the entire range).
  • Suitable for testing soldered devices and devices in sockets.
  • System Enclosure mm/ (inch) : L560 (22) x W450 (17.7) x H320 (12.5)
  • Environmentally Friendly Operation.
  • ESD-SAFE
• 7" Full color touch screen menu driven panel display.
• Ramp/Soak/Cycle profile programming, save & upload.
  • LAN interface.
• XP/ Vista/ Win 7 Operating system.
• Quiet Operation 60dBA
• Thermal head hose m/ (ft): 2.0 meter (6.5 ft)
• Electrical 220/240VAC, 50/60Hz.
    220 [Vac] = Imax 15 [A], one pole (Hot, Natural, GRD)
*Actual Temperature range is subject to plungers selection.
* * Actual Temperature range is subject to Thermal Load - please consult with your representative.
